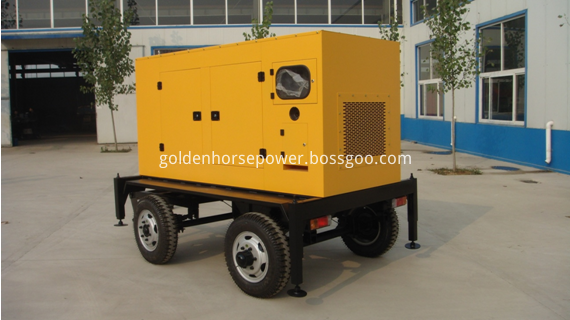

The Mobile Generator station is designed and developed by ourself,Its power ranges from 10KW-400KW,The components are flexibly coaxial connected.The control system is located upside the generator set.The whole set is placed in a protecting truck equipped with 4 wheels ,so that it is convenient to be connected with vehicles for easy moving.The product is appropriate for major or back up power supply in field work,town project,outlying areas lack of power,or army on the march and so on.
Relianle Performance:
1. Noise Grade Limit:(1m away from the Set): 80 dB
2. Steady Voltage Regulation Rate:0.5%
3. Transient state voltage regulation rate: -10%---+15%
4. Steady state frequency regulation rate:5%
5. Transient state frequency regulation rate:+10%
6. No-load voltage setting range:(95-105%)
Structure:
1. The generator set features in small volume,light weight and compact structure.
2. The acoustic shield is nice-looking and is convenient to be removed or installed,The set is draughty inside.
3. There are doors on both sides that it makes adding fuel or oil more convenient.
4. The control panel is well designed.The set is easy to control and operates safely its performance is really reliable.
The Main Technical parameter of Silent series Diesel Generator sets:
1. Rated Power(KW/KVA): 160/200
2. Rated Voltage(V) : 400/230 or 220/127
3. Rated Currency(A): 288
4. Rated Frequency(HZ): 50/60
5. Retad Speed(rpm);1500/1600
6. Rated Power Factor: 0.8(lag)
7. Phase Arragement: 3 phase 4 wire
8. Fuel Consumption(g/kwh): 196
Engine Technical:
1.Type:6CTAA8.3-G2
2. 12h Power/Standby Power(KW): 176/220
3. Starting Mode: DC 24V Electrical Starting
4. Speed Regulation Mode: Mechnical/Electrical
Alternator Parameter:
1. Type: Stamford /Marathon/Xingnuo
2. Rated Power(KW): 160
3. Excitation Mode: AVR Bruchless Excitation With AVR
4. Insulation Class: H (Temperature Rise Limit:125K
5. Protection Class: IP22
6. Control Unit Type: Integral Typ
